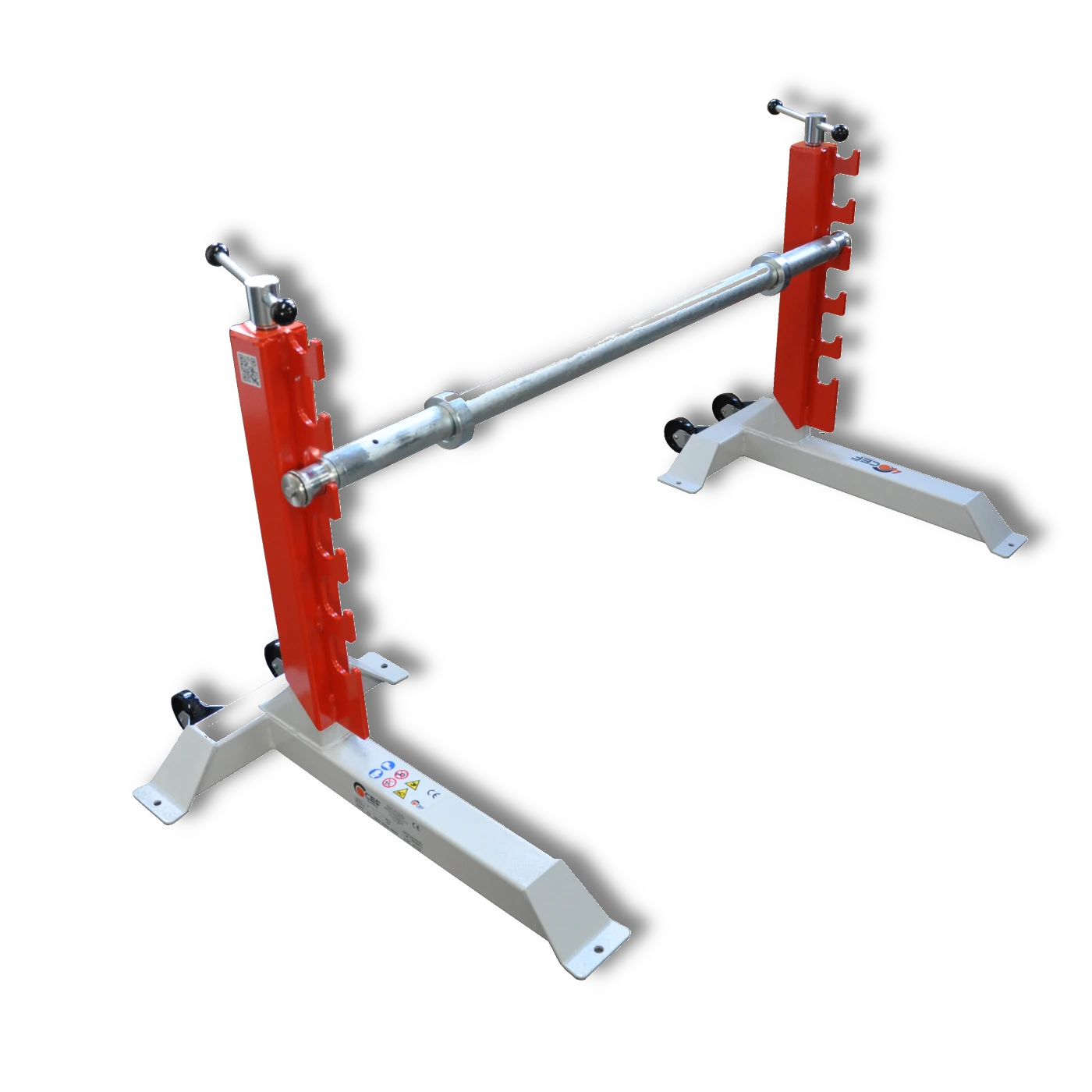

Trestle reel unwinder
Trestle reel unwinder
Features of the stand reel unwinder
Kit consisting of a pair of tripods and a reel holder rod
EASELS
- Designed for lifting reels with a maximum diameter of 1600 mm and a maximum weight of 1500 kg.
- Sistema di sollevamento a vite senza fine su cuscinetto per ridurre lo sforzo dell’operatore
- Adjustable shaft hooks depending on the diameter of the coil
- Service wheels for moving the trestles
- Removable frame for easy transport
- Dimensions 820x800x490mm
- Weight 22kg
- Frame painted with scratch-resistant epoxy powder RAL 7035
AUCTION
- Rod with self-centering collars
- Total shaft length 1250mm
- Collars to prevent the coil from moving during unwinding
- Inserendoli all’interno del foro bobina (diametro 80mm), centrano perfettamente il peso della bobina così da ottenere uno svolgimento fluido e veloce. Permettono di non danneggiare il foro centrale delle bobine in legno.
- Integrated terminal with bushings
FEATURES OF USE
| Coils – minimum diameter mm | 600 |
| Coils – maximum diameter mm | 1600 |
| Winding shaft diameter mm. | 48 |
| Coils – minimum width mm | 280 |
| Coils – maximum width mm | 1100 |
| Coils – Max load kg | 1500 |
[ 2 weeks if not available ]
secure payments
Product Details
Trestle reel unwinder
This kit allows you to unwind a cable reel, maximum diameter 1600 mm, maximum width 1100 mm, maximum weight 1500 kg.
E' realizzato professionalmente per offrire qualità e affidabilità nel tempo.
