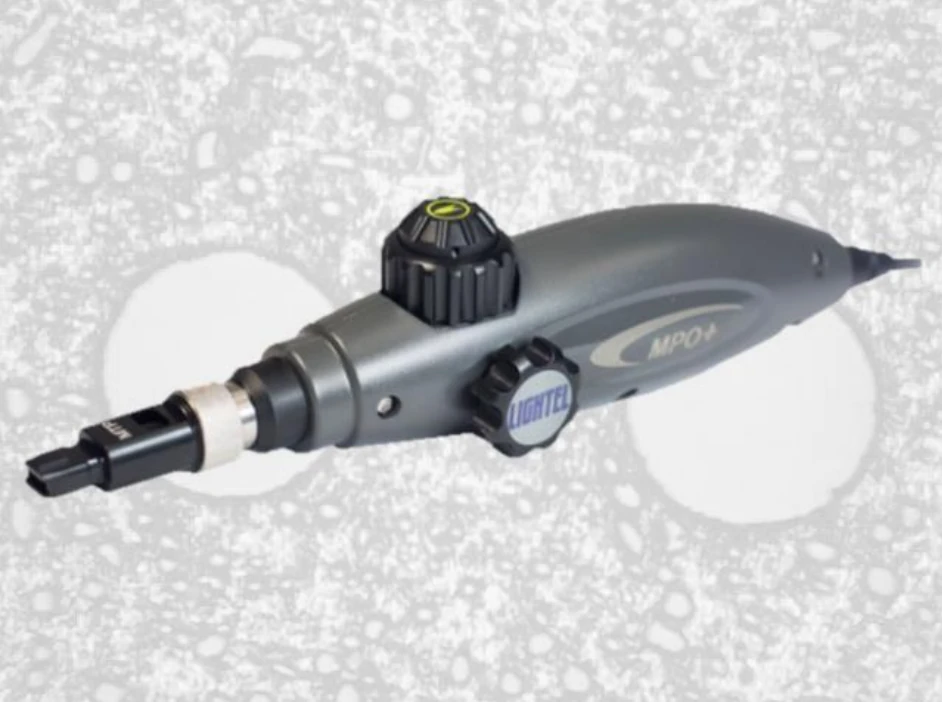

Digital microscope for MTP/MPO – DI1000-MPO+
Digital microscope for MTP/MPO – DI1000-MPO+
Features of the DI1000-MPO+ digital microscope for MTP MPO
- It allows you to evaluate the level of impurities present on the surface of the connector ferrule
- Special version of the basic version (DI1000), equipped with knobs for X,Y scanning
- Scan 1 to 4 rows (up to 48 fibers)
- Supplied with male/female ferrules for 12-fiber MTP(R)/MPO PC, as well as the standard ferrule set for 2.5 and 1.25 ferrules, PC finish.
- Availability of MTP/MPO APC and 16-fiber MPO tips
- It connects via USB to a PC.
- Image storage capability
- Certification to IEC 61300-3-35 is possible with the optional Connector View Plus software
[ 2 weeks if not available ]
secure payments
Product Details
Digital microscope for MTP/MPO – DI1000-MPO+
From the world leader in electron microscopes for optical connector inspection, the entry-level DI-1000 MPO+ offers everything you need for quality inspection of MPO/MTP(R) and standard SC/ST/FC/LC connectors with PC finish.
The probe connects to a Windows(R) PC via a USB-2 port. The software provided with the instrument allows for image viewing, digital zoom, and PC archiving.
The kit includes bundle/female ferrules for 12-fiber MPO PC, and universal ferrules for connectors (male/female) with 2.5 mm (SC, FC, ST) and 1.25 mm (LC, MU) PC ferrules.
Optionally, the kit for APC connectors and for numerous other optical connectors is available (see the complete list)
With the optional Connector View Plus software, you can generate pass/fail reports according to IEC 61300-3-35
